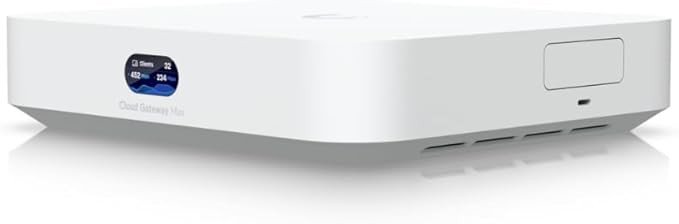

Ubiquiti UniFi Cloud Gateway Max (UCG-Max)

Product Overview

Take complete control of your network and physical security with the Ubiquiti UniFi Cloud Gateway Max (UCG-Max). Designed as a palm-sized powerhouse, this compact 2.5G Cloud Gateway delivers unprecedented multigigabit performance, enterprise-grade security, and integrated network video recording (NVR) for your home or small business.

Key Features & Benefits

• Multi-Gigabit 2.5G Connectivity: Equipped with one 2.5 GbE WAN port and four 2.5 GbE LAN ports, ensuring ultra-fast wired backhauls and smooth data transmission for next-generation WiFi 7 and WiFi 6E access points.

• Enterprise-Grade Security: Experience uncompromising protection. Powered by a Quad-core ARM Cortex-A53 processor, the UCG-Max delivers robust 1.5 Gbps routing with signature-based IDS/IPS threat detection, application-aware firewall rules, and content filtering.

• Built-in NVR for UniFi Protect: Say goodbye to separate storage hubs. The UCG-Max features lightning-fast onboard NVMe SSD storage (commonly 512GB, with options for larger capacities) seamlessly managing up to 15 HD, 8 2K, or 5 4K UniFi security cameras.

• Multi-WAN Load Balancing & Failover: Keep your business online 24/7. Dual-WAN capabilities allow for seamless load balancing and automatic failover, ensuring uninterrupted connectivity even if your primary ISP goes down.

• Full UniFi Application Suite: Completely plug-and-play with no extra CloudKey required. Run UniFi Network, Protect, Access, Talk, and Connect effortlessly from one beautifully designed, centralized interface.

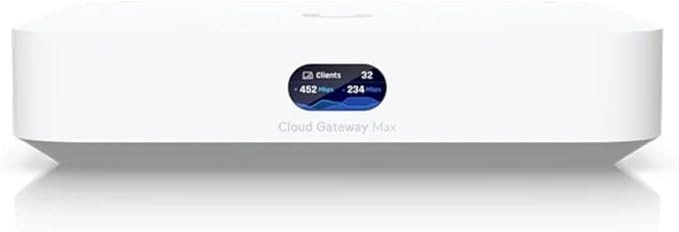

• Interactive LCM Display: A sleek 0.96" front-facing LCM status display provides real-time network health, throughput statistics, and vital system information at a single glance.

• Modern & Compact Design: Powered by a standard USB-C adapter (included) and weighing just 519g, this sleek polycarbonate device fits perfectly on any desk, shelf, or small office IT cabinet.




Technical Specifications

• Brand: Ubiquiti Networks

• Model: Cloud Gateway Max (UCG-Max)

• Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz

• Memory: 3 GB DDR4

• On-Board Storage: 512 GB NVMe SSD (Storage capacity may vary by SKU)

• Networking Interfaces:

  • WAN: (1) 1/2.5 GbE RJ45 Port

  • LAN: (4) 1/2.5 GbE RJ45 Ports

• IDS/IPS Throughput: Up to 1.5 Gbps

• Device Capacity: Manages 30+ UniFi devices and 300+ connected clients

• Display: 0.96" LCM Status Screen

• Power Method: USB Type-C (5V DC/5A)

• Max Power Consumption: 16.1W

• Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")

• Weight: 519 g (1.1 lb)




Who is the UCG-Max Perfect For?

• Small to Medium Businesses (SMBs): Ideal for retail stores, cafes, or boutique offices requiring robust Wi-Fi management, reliable failover, and physical camera security in one simple box.

• Smart Home Prosumers: Upgrade your home network to 2.5 Gbps to support multi-gig fiber internet plans, high-end gaming, NAS servers, and uninterrupted 4K/8K streaming.

• IT Enthusiasts: Ditch the bulky rackmount gear. Get enterprise-level features, SD-WAN, and WireGuard VPN support in a space-saving, quiet desktop form factor.
